Electrocompaniet
ECP 2 MKII Phono Stage
The Electrocompaniet ECP 2 MKII is a phono preamplifier/RIAA stage for vinyl playback. It uses instrumentation and operational amplifiers, discrete components in the signal path, and a fully DC-coupled topology, with a new chassis and front-plate design in the Classic Line style. Its phono section provides adjustable gain from 39.8–71.4 dB via RCA and 45.8–76.4 dB via XLR, resistance loading from 10 Ω–47 kΩ, and capacitive loading from 0–350 pF.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- Depth
- 373 mm / 14.6 inches
- S n r
- 96 dB, 1 kHz, A-weighted, ref. 10 dB V output
- Width
- 470 mm / 18.5 inches
- Height
- 78 mm / 3 inches
- THD noise
- < 0.003 % @ 1 kHz
- Weight
- 9 kg. / 19.8 lbs.
- Gain 1 khz RCA
- Adjustable 39,8 – 71,4 dB
- Gain 1 khz XLR
- Adjustable 45,8 – 76,4 dB
- Overload margin
- > 31 dB @ 1 kHz
- Subsonic filter
- -3dB @ 11 Hz, 24 dB/octave
- Output impedance
- 100 Ω single-ended, 200 Ω balanced
- Channel separation
- > 85 dB, 20 – 20 kHz
- Frequency response
- 20 – 20 kHz +/- 0.2 dB
- Maximum output level
- 17.5 V rms (+ 25 dB V)
- Capacitive loading cl
- Adjustable 0 – 350 pF
- Resistance loading rl
- Adjustable 10 Ω – 47 kΩ
- Riaa correction accuracy
- ± 0,1 dB
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Pro-Ject Audio Systems · phono-stages
Tube Box E
Price on request
- A close peer to this component
Pro-Ject Audio Systems · phono-stages

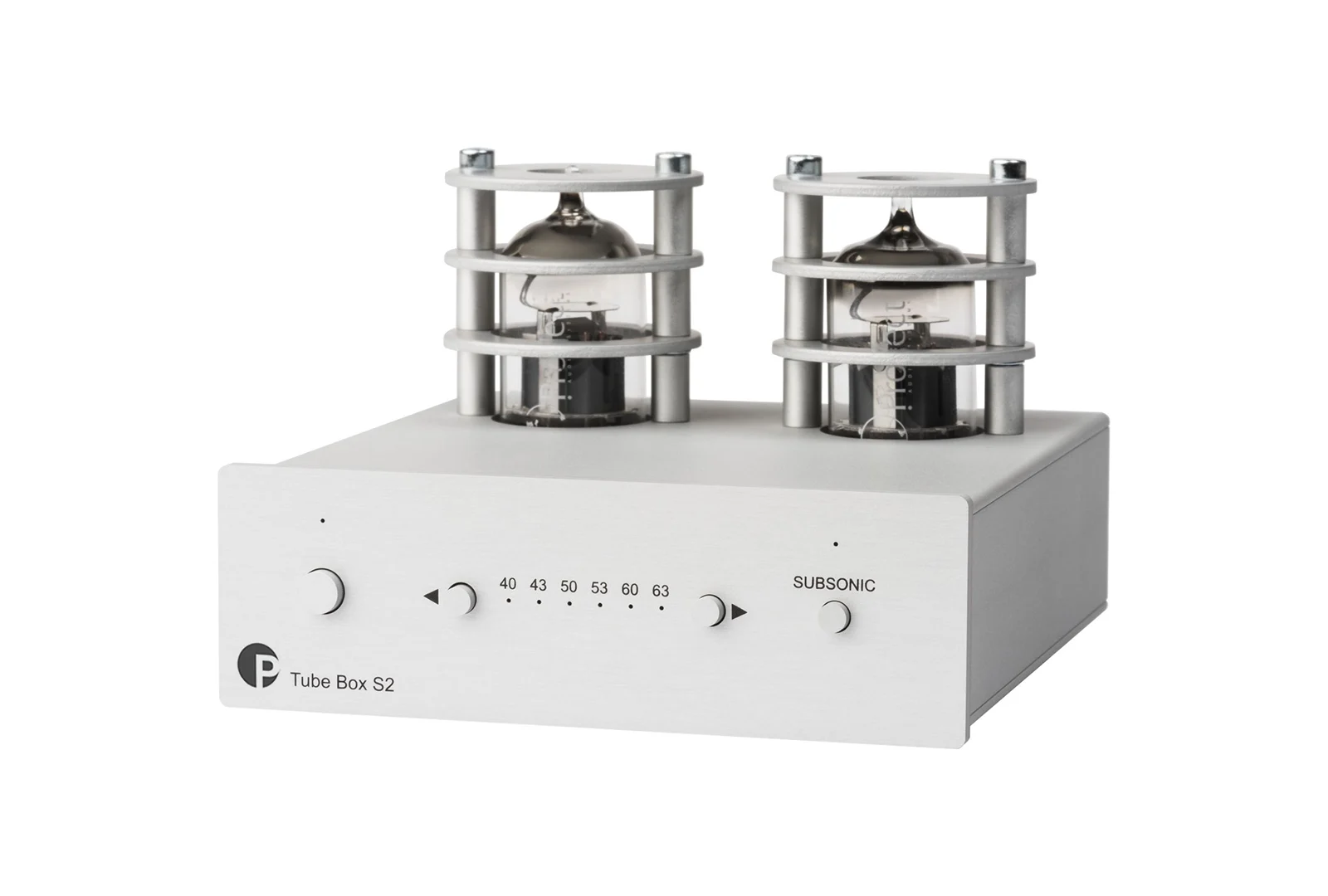

Tube Box S2
