Nagra
MELODY
The Nagra MELODY is a solid-state preamplifier manufactured by Nagra from 2012 to 2018. Its circuit uses discrete audiophile-grade components and individually tested and matched transistors, with selectable 12 dB gain increase, five RCA inputs, and switchable RCA and XLR outputs. It has a 10 Hz–50 kHz frequency response (+0/-1 dB), input impedance above 75 kΩ, RCA/XLR output impedance of 47/100 Ω, and an optional MM/MC phono stage using hand-wound step-up transformers.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- SNR
- > 100 dB (ASA A) Ref 1 V
- Bandwidth
- 20 Hz – 50 kHz
- Crosstalk
- > 75 dB
- Distortion
- < 0.02 %
- Weight
- 3.2 Kg – 7 lbs MELODY unit alone
- Power supply
- 115 V or 230 V AC Factory set
- Dimensions
- 310 x 254 x 76 mm 12.2 x 10 x 3 inches"
- Dynamic range
- > 110 dB Gain at +12 dB
- Input impedance
- > 75 K Ohms
- Sensitivity low
- MM 16 mV
- Output impedance
- 47 Ohms on RCA 100 Ohms on XLR
- Sensitivity high
- MM 2.2 mV rms
- Frequency response
- 10 Hz – 50 kHz (+0 / -1 dB)
- Melody consumption
- 230 V 30 mA 12 V 140 mA Standby <10 mW
- Signal to noise ratio
- > 75 dB (ASA A) Ref. 1 V rms
- Total harmonic distortion THD
- <0.02 % @ 1 kHz, 1 V rms without load
- Maximum input level to reach 0 db meter
- > 25 V rms Gain at 0 dB
- Minimum input level to reach 0 db meter
- 0.25 V rms Gain at + 12 dB
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Nagra · preamplifiers

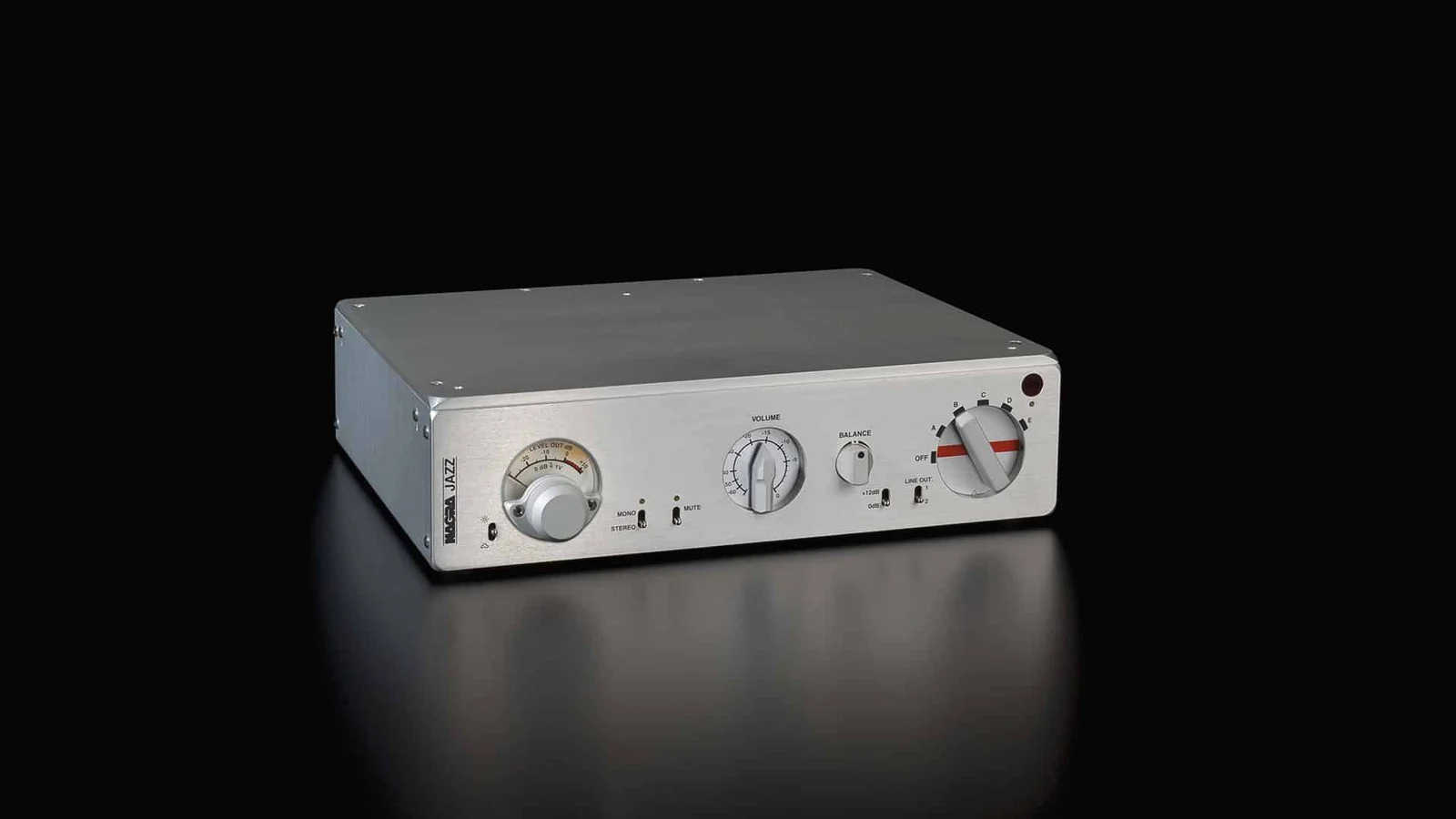

JAZZ
