Nagra

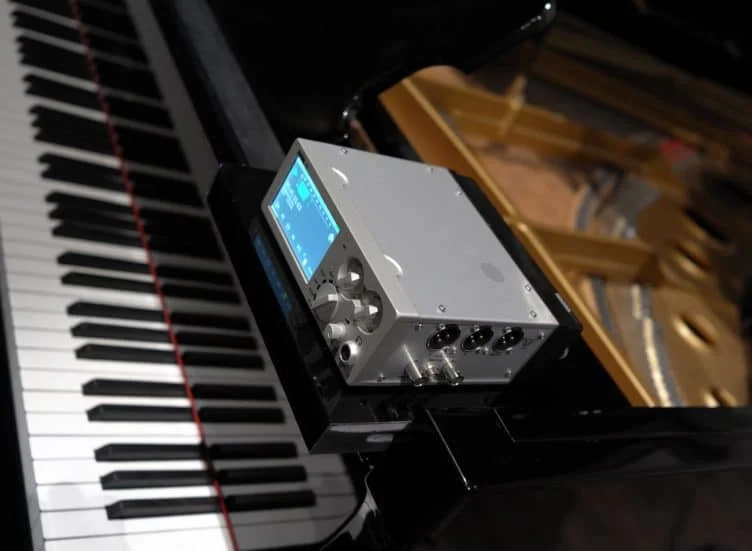

VI Music (only available on Annivesary Edition with aluminum front panel)
The Nagra VI is an 8-channel digital audio recorder made by Nagra, with four microphone preamplifier inputs, two line inputs shared with AES inputs, and a stereo mix on channels 7 and 8. It records 16- or 24-bit linear PCM Broadcast Wave files with iXML metadata at sampling rates from 44.1 to 192 kHz, using a 120 GB internal hard disk and hot-swappable Compact Flash media. The recorder has a 3.5-inch 320 × 200 sunlight-readable color TFT display, SMPTE/EBU time code with chase synchronization, a lithium-ion battery, and an interchangeable machined aluminum or plastic front panel.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- Dither
- Menu selectable 24/16bits on Inputs and/or Outputs
- Tracks
- 8 individual
- Display
- 3.5 inch colour TFT LCD
- Limiters
- Selectable on microphone inputs, individual or in pairs. Active at -8dBFS, max +36dB for -2 dBFS
- USB host
- USB 2.0 connector type “A”
- File type
- 16 / 24 bit Broadcast Wave File BWF (WAV) with iXML, AES 31 compatible
- Headphones
- 2 x Stereo 6.3mm (¼”) Jack 50 Ω
- USB device
- USB 2.0 connector type “B”
- Weight
- 3.8 kg (8.3 lbs) (with battery pack)
- Word clock
- 9-pole “D” type connector (In / Out)
- Charge time
- 3 hours (with supplied Lithium-Ion pack)
- Disk format
- FAT 32
- M s decoder
- Switchable
- Level meters
- On colour display AND by LED for microphone inputs
- Power supply
- Lithium-Ion, or external 9 – 16V (XLR 4 pole)
- THD at 1
- <0.1% Mic, <0.01% line (measured on AES out) kHz
- Dimensions
- 310 x 74 x 285mm (W x H x D) (Incl. battery box)"
- Ext power out
- 2 Hirose 12V (max 1A)
- Input filters
- LFA (with vortex filtering)
- Sampling rate
- 44.1, 48 kHz, 88.2, 96, 176.4 and 192 kHz (with 0.1% pull up / down)
- Digital inputs
- 2 x XLR AES-3 shared with analogue inputs 5+6
- Digital output
- XLR AES-3 (24 bit or 16 bit dithered)
- Operating temp
- From -20°C to +60°C (without internal hard disk) From 0°C to +50°C (internal hard disk installed)
- Analogue inputs
- 4 x symmetrical XLR Microphone (Dynamic, +48V Phantom) / line
- Mono polyphonic
- Selectable
- Removable media
- Compact Flash type I / II (Hot Swappable)
- Internal speaker
- 1W
- Recording method
- Linear digital PCM
- Slate microphone
- Electret behind the front panel
- Time code in out
- 5 pin LEMO (SMPTE / EBU)
- Power consumption
- Approximately 10W
- Relative humidity
- From 10% to 99% (non condensing)
- Frequency response
- Mic, 10Hz – 48 kHz ± 0.5 dB, Line ±0.2 dB (measured on AES out)
- Recording capacity
- 15 mins of 8 track 24 bit 48 kHz per GB of disk / memory
- A d d a conversion
- 24 Bit Sigma Delta
- Data storage medium
- 120 GB Internal hard disk
- Analogue line output
- 2 x XLR 4.4V max (+15 dBm)
- Pre recording buffer
- Up to 20 seconds @ 48 kHz 24-bit on 8 tracks Max 10 seconds @ 96 kHz 24-bit 48kHz 24-bit on 8 tracks
- Signal to noise ratio
- >114 dB
- Line input sensitivity
- Adjustable from -6 dBm up to +24 dBm for 0 dBFS recording
- Input level adjustment range
- 50 dB Mic and from -6 to +24 dB Line
- Input noise with dynamic mic
- 4 dB (measured ASA “A” loaded 200Ω
- Microphone input sensitivity
- 2.8, 10 and 30 mV/Pa selectable
- Input noise with condenser mic
- 0.88 µV (-119 dBm)
