Aavik
U-180
The Aavik U-180 is an integrated amplifier and DAC made by Aavik, rated at 2 × 300 W into 8 ohms and 2 × 600 W into 4 ohms. Its DAC section has five digital inputs, asynchronous sample-rate conversion and reclocking to 200 kHz/24-bit PCM, while the amplifier uses UMAC™ technology with sine-wave PWM generation and dual mixed-mode feedback. The unit uses a natural-based composite cabinet with minimal aluminum, a shared amplifier/DAC mainboard, 36 active Tesla coils, 88 active square Tesla coils, and a differential floating DAC current-to-voltage topology with virtual ground.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- Imd
- <0,002% (1-100W, 4 ohm)
- Tim
- <0,008% (1-100W, 4 ohm)
- Idle
- <65W
- Uac 2
- 1 x USB
- Output
- 2 x 300W 8 ohm
- Optical
- 2 x TOSLINK
- S p dif
- 2 x BNC
- Standby
- <0.5W
- Line out
- 1 x RCA
- L x w x h
- 400 x 384 x 102 mm
- Max output
- 7,5Vrms
- Weight
- 8.8 kg lbs
- Gain line 5
- 1-11dB; max input 6,5V RMS
- Gain line 1 4
- 5-15dB; maximum input 4.5V RMS
- Volume control
- 76 dB – 1dB steps
- Distortion THDN
- <0,006% (1-100W, 1kHz, 8 ohm)
- Input impedance
- 10K ohm
- Dither circuitry
- 5
- Output impedance
- 50 ohm
- Active tesla coils
- 36
- Distortion line stage
- <0,005% (THD at 1kHz, 1V input)
- Active square tesla coils
- 88
- Anti areal resonance coils
- 4
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Aavik · integrated-amplifiers
I-180
Price on request
- A close peer to this component
Aavik · integrated-amplifiers

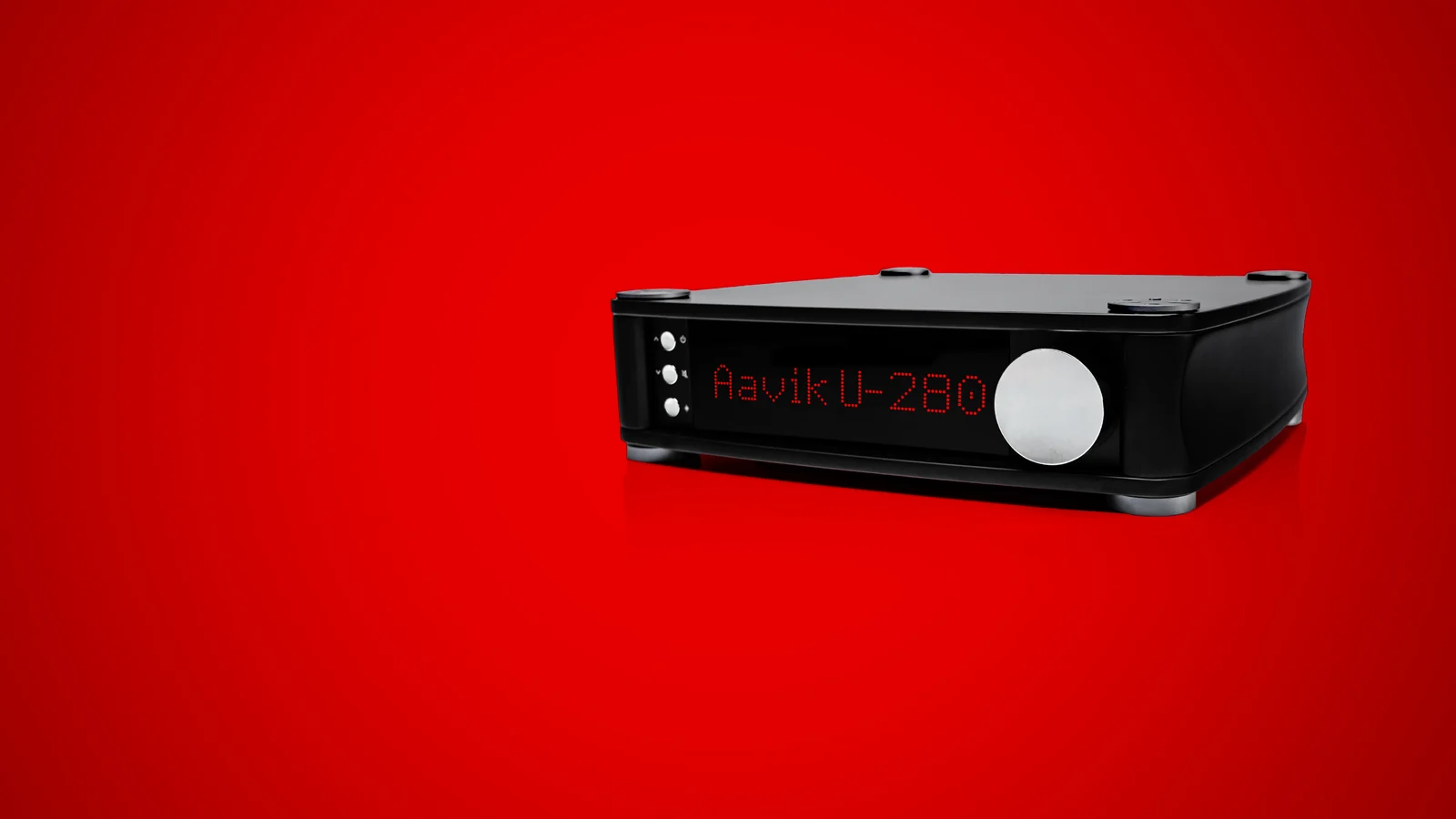

U-280
Price on request
- A close peer to this component
Aavik · integrated-amplifiers

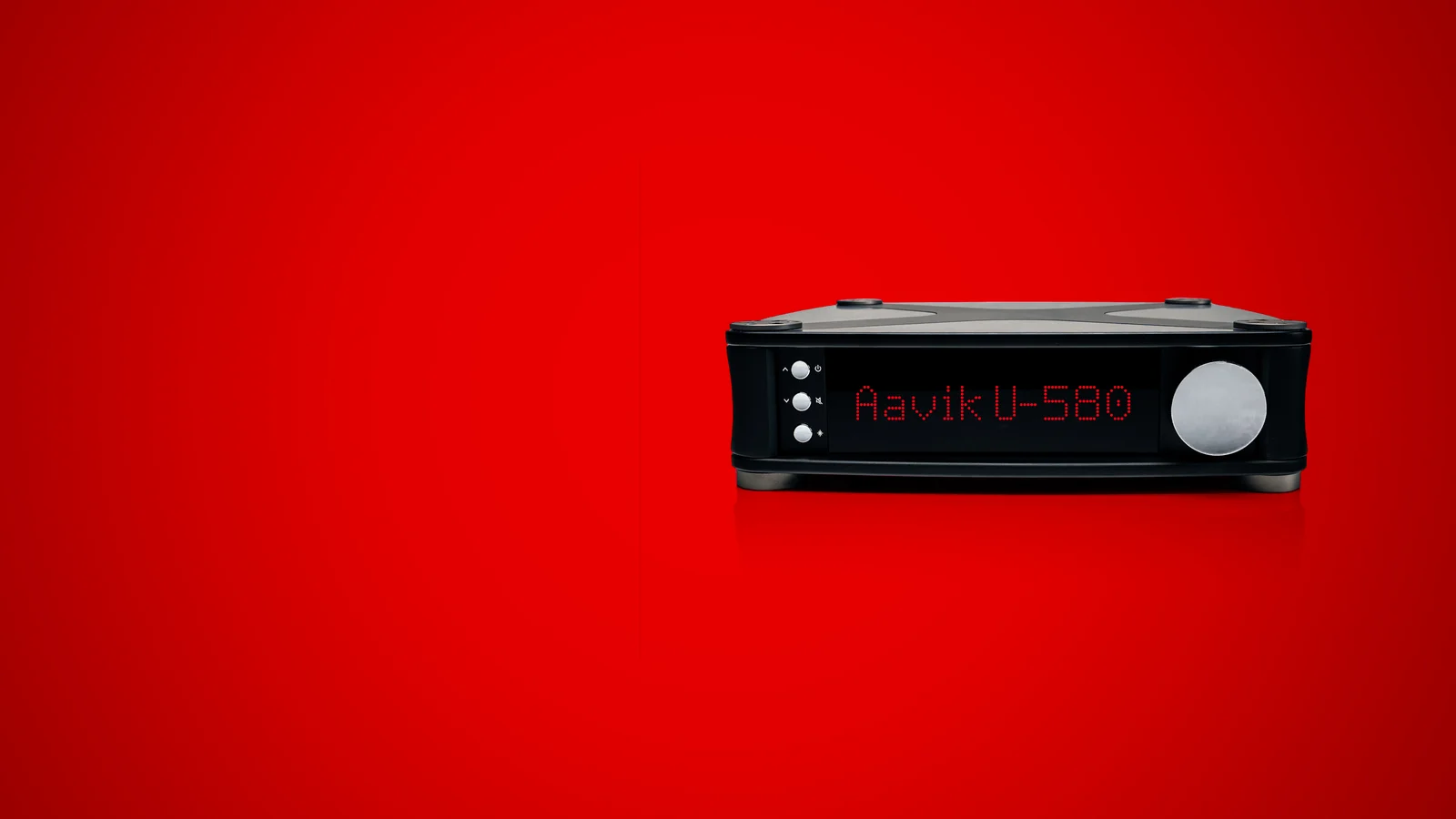

U-580
