Tonearms

The Acoustic Signature TA-5000 NEO is a high-end pivoted tonearm available in 9-inch and 12-inch versions, using a triple-layer carbon armtube with specially designed damping elements and a rigid stainless-steel tonearm axis. Its gimbal arrangement employs pre-tensioned SKF hybrid ball bearings made of ceramic and stainless steel, with internal 4N high-purity silver wiring. The tonearm provides adjustable VTA and azimuth, an anti-skating knob, a brass counterweight, SME-style mounting, and an external Atlas Equator 5-pin-to-RCA phono cable.

The Acoustic Signature TA-7000 NEO is a 9- or 12-inch tonearm with a super-rigid, conically shaped carbon armtube featuring internal 3D damping and pre-tensioned high-precision ball bearings. It uses a stainless-steel tonearm axis, 4N high-purity silver internal wiring, adjustable VTA and azimuth, anti-skating control, SME-style mounting, and an external 1.5 m Atlas Equator 5-pin phono cable with RCA or XLR connectors. The 9-inch version has a 239.3 mm effective length, 222 mm mounting distance, 10.2 g effective mass, and 17.3 mm overhang; the 12-inch version has a 309 mm effective length, 295.8 mm mounting distance, 13.9 g effective mass, and 13.2 mm overhang.

Designed by D.D. Brakemeier, the Axiom is a 12-inch reference tonearm from German boutique manufacturer Acoustical Systems, using a titanium/carbon-composite arm wand with internal liquid damping and a double-gimbal bearing built from aerospace-grade German ball bearings; every unit is assembled, tested, and calibrated by the designer himself in Germany, exemplifying a genuinely small-batch, hand-finished production model (Acoustical Systems).

Der AMG Giro / 9W2 ist ein riemengetriebener Plattenspieler mit einer 33 mm starken, schwarz eloxierten Aluminiumzarge, einem 40 mm starken POM-Plattenteller und einem Schweizer Gleichstrommotor mit verdecktem Rundriemenantrieb. Das geschlossene hydrodynamische Tellerlager arbeitet mit dauerhaftem Ölvorrat; der 229 mm lange 9W2-Tonarm besitzt eine spielfreie Vertikallagerung über zwei senkrechte, 0,5 mm starke Biegestifte sowie Nadellager für die horizontale Führung. VTA, Azimut und magnetisches Antiskating sind einstellbar, die effektive Tonarmmasse beträgt gut 9 g; Abmessungen und Gewicht liegen bei 430 × 149 × 315 mm und 11,5 kg.

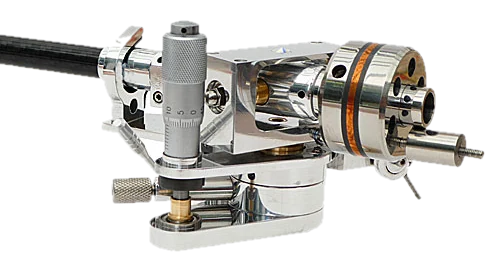

The Audiomods Series Six is a UK hand-built tonearm representing a ground-up redesign of the small English maker's previous Series Five, featuring a multi-layer carbon-fibre/aluminium arm tube assembly, a detachable cartridge plate, and built-in azimuth adjustment. Designed and produced by Jeff Spall in Deal, Kent, it has earned strong reviews for its performance against far more expensive arms, and is offered in 10.5" and 12" versions with several finish and low-mass ("LM") options.

The Odin is a linear-tracking air-bearing tonearm from Danish boutique manufacturer Bergmann Audio, engineered with a frictionless air-cushion slider and a damped double carbon-fiber armtube, and reviewed favorably by Positive Feedback as an accessible entry point into air-bearing tangential tracking (Positive Feedback review). Bergmann is a small Danish manufacturer selling direct and through a limited international dealer network, with the Odin able to mount to third-party turntables as well as Bergmann's own designs (Positive Feedback review).

The clearaudio Tracer is a tonearm featuring extremely low-friction ball bearings, an angled tungsten axle, and sapphire bearings for controlled cantilever guidance. Its torsionally rigid carbon-fiber tube is designed for high stability, agility, and controlled resonance behavior. Magnetic anti-skating is integrated into the pivot axis, with adjustable azimuth, headshell, and counterweight; finishes include silver carbon and black carbon.

The Talea is a unipivot tonearm from Durand Tonearms, a small Canadian workshop known for hand-built, wood-armwand tonearms sold direct and through a limited dealer network; it won Tone Publications' Publisher's Choice Award in 2012 and remains a fixture on enthusiast short-lists for affordable-boutique unipivot arms (Tone Publications review). Its offset pivot point lets the 10.3-inch arm fit mounting cutouts designed for standard 9-inch arms, and it is available with either a fixed tonearm cable or a breakout box for standard 5-pin cables (Tone Publications review).

The EMT 909-HI is a 9-inch tonearm for hi-fi cartridge systems, featuring a rigidly fixed headshell that permits azimuth correction when necessary. Its design combines modern bearing and manufacturing technology with traditional EMT construction; each tonearm comprises over 150 individual parts, with structure components machined from solid material, a stainless-steel base, and aluminum-alloy moving elements. It is compatible with any EMT hi-fi cartridge.

The EMT 912-HI is a 12-inch high-end hi-fi tonearm with a rigidly fixed headshell for EMT hi-fi cartridge connection. Its construction combines modern bearing and manufacturing technology with traditional EMT design, using precision-machined solid-material structural parts, a stainless-steel base, and aluminum-alloy moving elements. Each tonearm consists of more than 150 individual parts, and the fixed headshell permits azimuth correction when necessary.

Legendary British idler-drive transcription motor unit, made 1954-1965 in grease- and oil-bearing versions. Restored and custom-plinthed examples anchor a very active collector market.

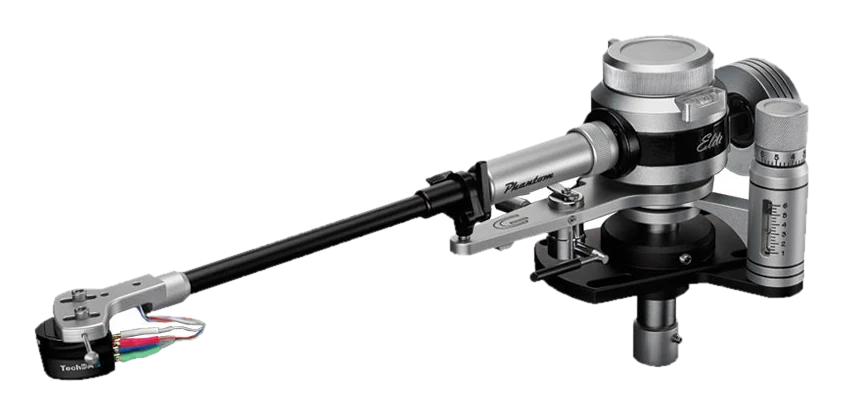

The Graham Phantom Elite is the flagship evolution of Graham Engineering's long-running unipivot tonearm line, built around a redesigned pivot assembly with constrained-layer damping of two dissimilar metals and a high-density, non-magnetic tungsten insert for improved energy absorption. It uses removable, larger-diameter titanium armwands available in 9", 10", and 12" lengths, and its patented Magneglide magnetic stabilizing system keeps the arm pivoting in a true vertical plane with no azimuth deviation as it tracks warped records.

The IT-345CR1 is a hand-built 9-inch Japanese tonearm from Ikeda Sound Labs, a small maker closely associated with the late Isamu Ikeda's cartridge and tonearm designs, sold through specialist analog dealers such as Artisan Fidelity and reviewed for its rich, tonally sweet performance in high-end Japanese-inspired systems (IKEDA Sound Labs official; trueaudiophile.com review).

The Jelco SA-750E is the 10-inch member of Jelco's long-running Japanese-made static-balance tonearm series, prized by turntable manufacturers and DIY analog enthusiasts for its precision gimbal bearings and independently adjustable VTA, azimuth, and anti-skating (hifi12a.de; Audio Sensibility). It is widely OEM'd into turntables from other high-end brands and sold direct to end users as a standalone upgrade arm.

Short-lived flagship 9-inch arm with knife-edge bearing from the Japanese OEM tonearm maker Jelco, which ceased operations in 2020. Now sought after on the used market.

The Korf TA-SF9 Series II is a fixed-headshell tonearm for vinyl playback, using a fully ceramic headshell and aerospace-grade, zero-stiction flexure bearings. Its design incorporates a stainless-steel arm tube, stainless-steel vertical column, steel vertical shaft, internal rigidity enhancements, and a new azimuth-adjustment mechanism. It is available with a clamping round JIS/Linn-type mounting base, a sliding SME-type base, or both.

The Kuzma 4Point 14 is a 14-inch precision tonearm from Slovenian manufacturer Kuzma, built around a unique proprietary "4Point" bearing system using sapphire and ruby cups with steel pivots — two points controlling vertical movement and two controlling horizontal movement — engineered for minimal friction and zero play in any direction. Its extended 14" effective length reduces tracking-angle error compared with shorter arms, and it has been widely praised by reviewers as one of the best-value arms in the ultra-high-end tonearm market.

The Stogi S 12 VTA is Slovenian manufacturer Kuzma's 12-inch unipivot tonearm fitted with a precision VTA tower, allowing on-the-fly vertical tracking angle adjustment without loss of rigidity — a feature that distinguishes it from the standard Stogi S and from Kuzma's flagship 4Point arms (Kuzma official; AnalogPlanet review). All parts are machined from solid metal blocks, with a solid brass base and solid aluminum headshell.

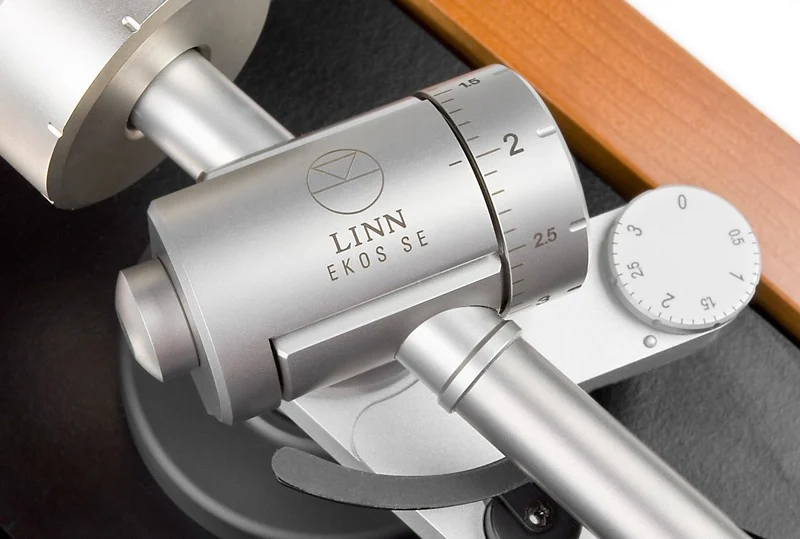

The Linn Ekos SE is a high-end tonearm for Linn LP12 subchassis turntables, with Linn-mount drilling and a supplied clamping base. Its construction uses a titanium arm tube, an aluminum headshell, a stainless-steel bearing block and upper shaft, and aluminum components elsewhere to reduce mass; the 2012 revision includes a redesigned bearing block, heavier headshell and counterweight, and a matte-silver antiskating assembly. Horizontal and vertical bearings use close-tolerance, low-friction assemblies, with direct tracking-force adjustment and adjustable antiskating; listed price was approximately €4,950.

The Moerch UP-4 is a Danish-made unipivot tonearm distinguished by its system of interchangeable, color-coded arm tubes (light, medium, extra-heavy effective mass), letting one arm base be optimized for cartridges of very different compliance (Moerch official site; Analogue Seduction). It uses a hardened-steel pivot resting on a polished sapphire bearing, damped in all directions with silicone fluid.

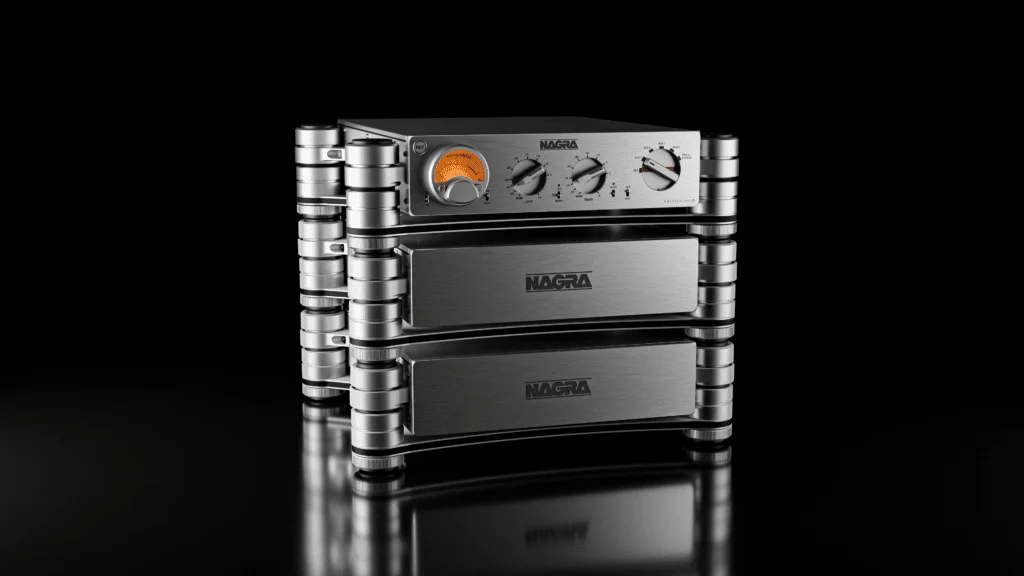

The Nagra Reference PREAMP is an analog preamplifier made by Nagra. It uses two selected and tested E88CC New Old Stock tubes, custom-made capacitors, new-generation high-voltage power supplies generating a 200 V DC grid tension, and a phenolic damping layer inside the top cover. Its dual-chassis power-supply arrangement dedicates one supply to the audio signal section and another to controls, relay switching, and home automation; specifications include input impedance above 50 kΩ, output impedance below 0.2 Ω at −15 dB volume, dynamic range above 150 dB, and dimensions of 438 × 396 × 121 mm.

The 16mm Clamp Counterweight is a replacement tonearm counterweight specified to fit Origin Live Encounter models and above; the manufacturer is not explicitly identified on the page. It is intended for cases where a cartridge is abnormally heavy or light, and the page does not state its material or other construction details.

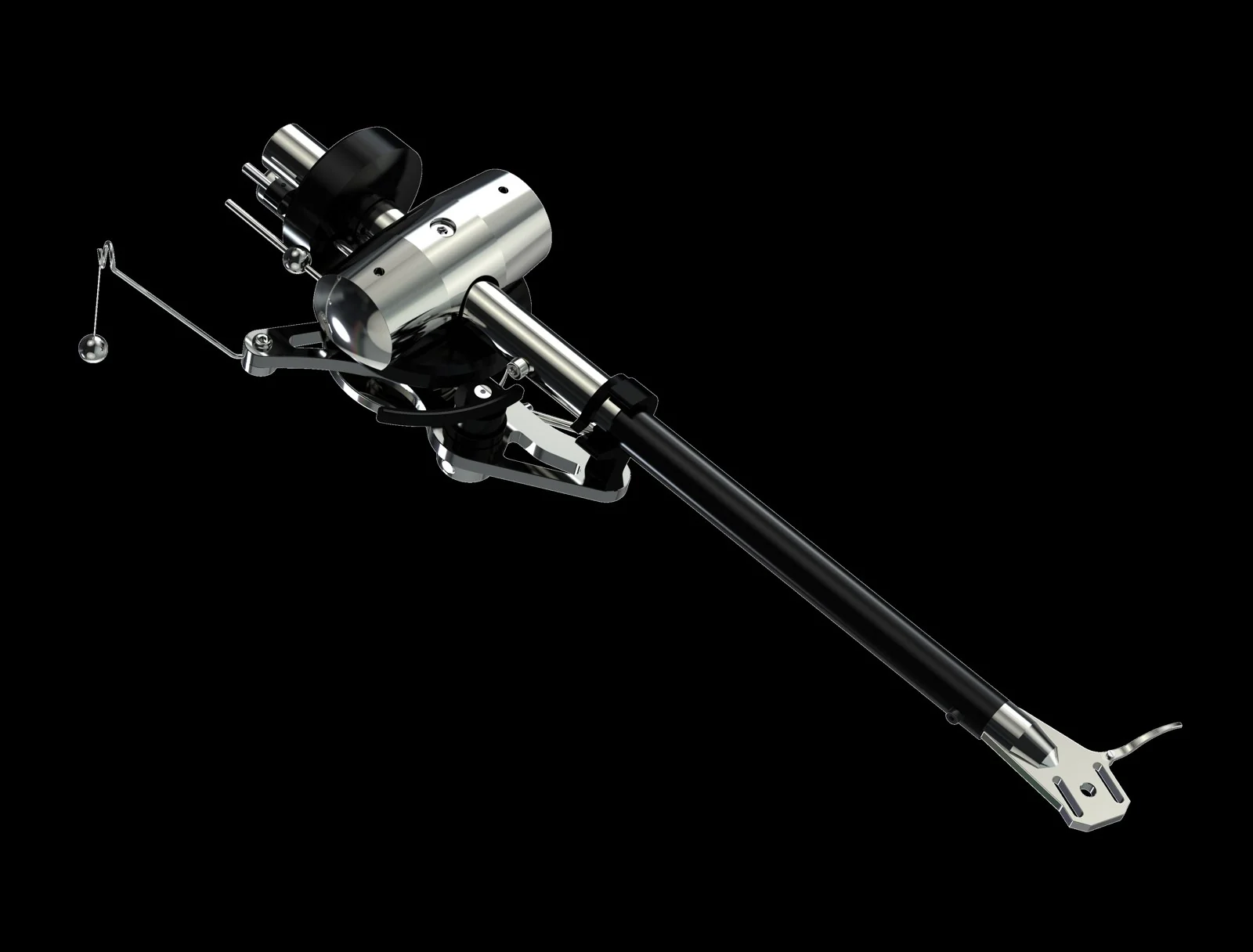

The Origin Live Enterprise is the UK manufacturer's flagship "High-End" series tonearm, sitting above the Origin Live Illustrious and below the reference-grade Agile in the company's range, and is built around a dual-pivot bearing design intended to combine unipivot-like freedom of movement with gimbal-style stability. It uses an aircraft-alloy tube reinforced with carbon fibre and is aimed at serious analog enthusiasts pairing it with high-performance turntables from Origin Live and other manufacturers.
