Nagra
REFERENCE PREAMP

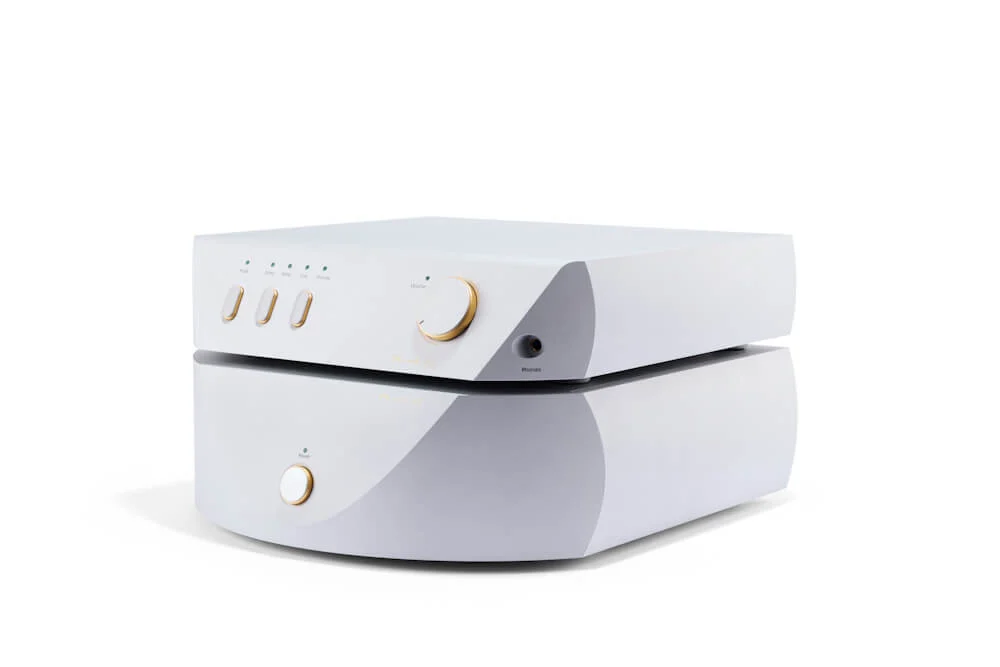

The Nagra Reference PREAMP is an analog preamplifier made by Nagra. It uses two selected and tested E88CC New Old Stock tubes, custom-made capacitors, new-generation high-voltage power supplies generating a 200 V DC grid tension, and a phenolic damping layer inside the top cover. Its dual-chassis power-supply arrangement dedicates one supply to the audio signal section and another to controls, relay switching, and home automation; specifications include input impedance above 50 kΩ, output impedance below 0.2 Ω at −15 dB volume, dynamic range above 150 dB, and dimensions of 438 × 396 × 121 mm.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- 0
- 低： 1.0 V rms （音量 0 dB） 高： 2.0 V rms （音量 0 dB） 工作室： 10 V rms （音量 0 dB）
- Tubes
- 2 x E88CC New Old Stock Selected and tested by Nagra
- THD n
- 见图表 FFT THD + N @ 1 kHz, 1 V 输出，输出无负载
- Crosstalk
- > -130 dB 1V rms 1 kHz > -110 dB 1V rms 20 kHz
- Weight
- 30 kg / 66 lbs preamp and power supply
- Dimensions
- 438 x 396 x 121 mm / 17.3 x 15.6 x 4.8 inches"
- Dynamic range
- > 150 dB Volume at -15 dB
- Input impedance
- > 50 K Ohms
- Output impedance
- < 0.2 Ohms Volume on -15 dB < 40 Ohms Volume on 0
- Frequency response
- dB
- Harmonic distorsion THD n
- See graphics FFT THD+N @ 1 kHz, 1 V out, no load on the output
- Input level for 0 db on modulometer
- Low: 1.0 V rms Volume at 0 dB High: 2.0 V rms Volume at 0 dB Studio: 10 V rms Volume at 0 dB
