PS Audio
S300 Amplifier
The PS Audio Stellar S300 is a stereo power amplifier rated at 140 W per channel into 8Ω and 300 W per channel into 4Ω, with stability for musical transients at 2Ω. Its topology combines an ultra-linear, high-current MOSFET output stage with a discrete Class A MOSFET-based AnalogCell input stage and dual mono operation with separate power supplies. Connectivity includes RCA single-ended and XLR true-balanced inputs, along with dual copper, nickel-plated binding-post outputs per channel.
MSRP
$1,999
Used market · Excellent
$1,399est.
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- 2
- Stable for musical transients
- 4
- 300W minimum
- 8
- 140W minimum
- Gain
- 30.5dB +/-0.5dB
- Noise
- 1kHz@300 Watts < -100dB
- 1khz 1w 4
- <0.02%
- 1khz 375w 4
- < 0.01%
- Unit weight
- 13 lbs [5.9 kg]
- Audio inputs
- RCA (Unbalanced) XLR (Balanced)
- Output power
- Both channels driven 120vac mains, 1kHz, 1% THD
- 10 20khz 1w 4
- <0.02%
- 10 50khz 1w 4
- < 0.05% (90kHz BW)
- Color options
- Black Silver
- Damping factor
- 50Hz. 2.8VRMS 8Ω >1100 4Ω >550
- Input impedance
- Unbalanced 50KΩ Balanced 100KΩ
- Shipping weight
- 16.5 lbs [7.5 kg]
- Speaker outputs
- Copper base nickel plated binding posts (2 pair per channel)
- Unit dimensions
- 17”W x 3”H x 12”D (13"D w/connectors)
- DC trigger input
- 3.5mm 5-15VDC
- Output impedance
- 50Hz, 2.8VRMS <0.007Ω
- Frequency response
- 2.8VRMS into 4Ω 10Hz – 20KHz +/- 0.5dB 10Hz – 50KHz +0.1/-3.0dB
- Mains power inputs
- IEC C14
- Shipping dimensions
- 22”W x 8”H x 17”D
- Accessories included
- US (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version)
- Idle power consumption
- 13W
- Voltage options factory set only
- Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V
- Sensitivity for rated output power
- 1.01V
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Step up
PS Audio · power-amplifiers

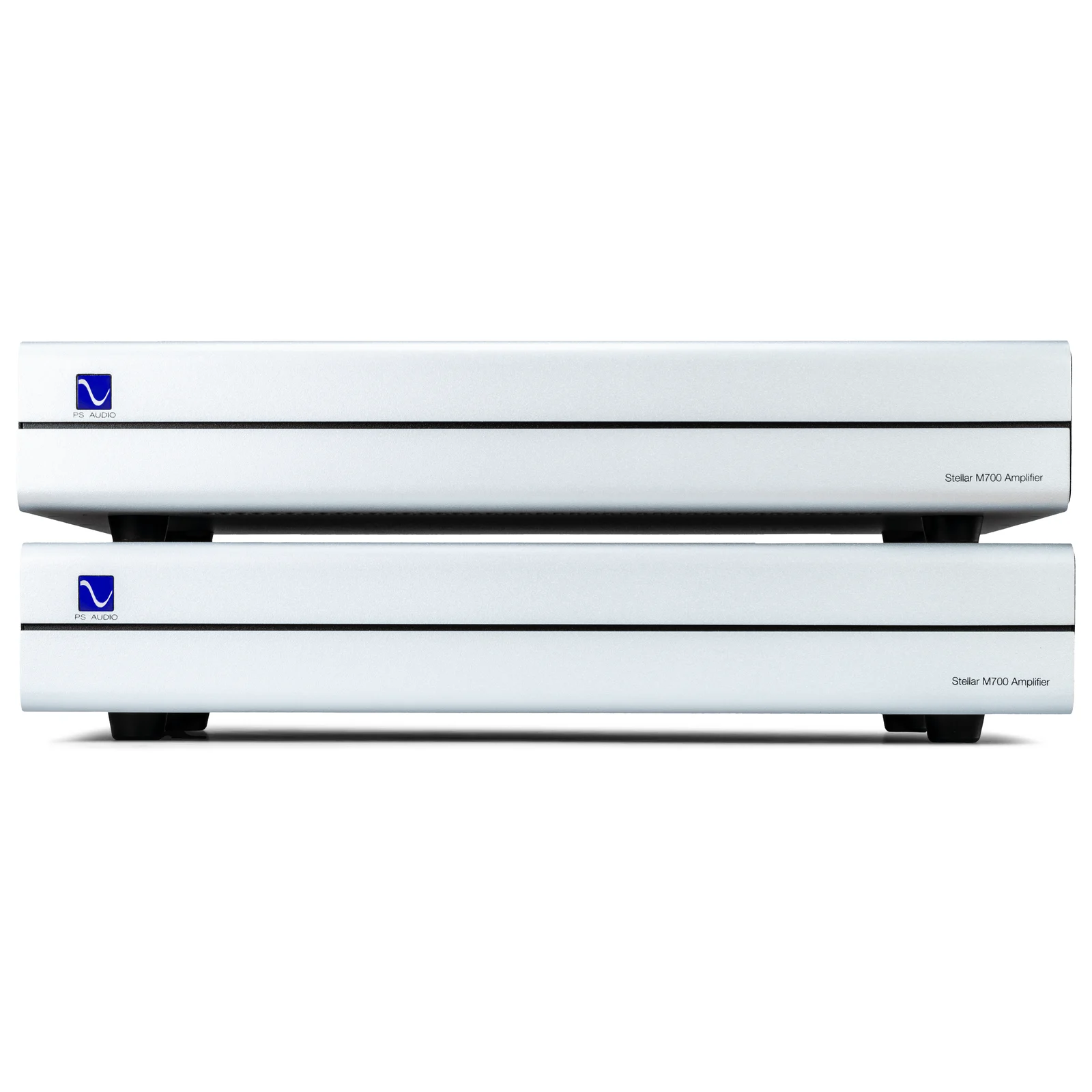

M700 Amplifier Pair
$3,498$3,498
- A step up in the same category
PS Audio · power-amplifiers
BHK Mono 300 Power Amplifier
$16,998$16,998
- A step up in the same category
PS Audio · power-amplifiers
PMG S400 Stereo
$9,999$9,999
- A step up in the same category
PS Audio · power-amplifiers

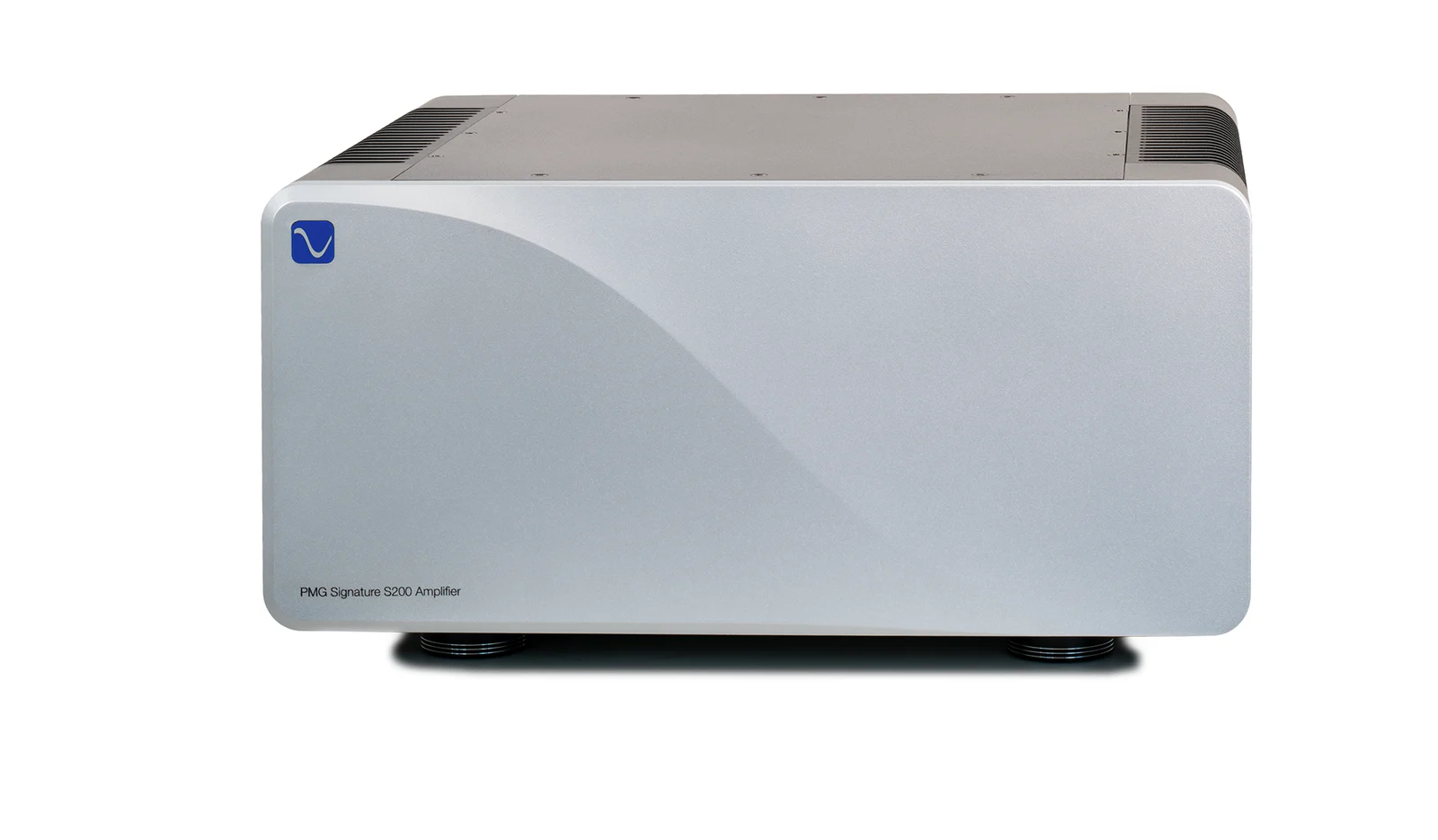

PMG S200 Stereo
