DS Audio
ES-001
The ES-001 is a precision record clamp built by optical-cartridge specialist DS Audio that measures and helps correct vinyl record eccentricity — the mismatch between a pressed record's actual groove center and the turntable spindle's absolute center — which is a common cause of wow, flutter, and pitch instability in vinyl playback. Using two sets of infrared LEDs and position-sensing detectors arranged 90 degrees apart, it displays a live eccentricity reading so the user can manually reposition the record on the spindle (aided by an included precision awl for spindle-hole adjustment) to minimize rotational error before playback.
MSRP
$6,000
Used market · Good
$4,375
MSRP to used market
From $6,000 at launch to $4,375 today.
Specifications
- Price
- $6,000 USD
- Weight
- 620 g including batteries
- Function
- Detects and displays record eccentricity (offset between groove rotation center and spindle center) in real time, allowing manual repositioning of the LP to reduce wow/flutter and improve tracking stability
- Material
- Aluminum and tungsten construction, functioning as a record clamp/weight during measurement
- Dimensions
- 80 mm diameter × 70 mm height
- Power source
- Two AA batteries
- Measured effect
- Correction factors up to ×24 reported on specific pressings (e.g., eccentricity reduced from 48μm to 2μm on one Roger Waters LP); results vary significantly by individual record and pressing
- Sensing technology
- Two sets of infrared LED emitters and PSD (position-sensitive detector) elements arranged at a 90-degree angle, reading run-out at the record's innermost groove as it rotates
- Included accessories
- Precision awl tool for minor adjustments to the LP's spindle hole when needed
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Pro-Ject Audio Systems · analog-accessories

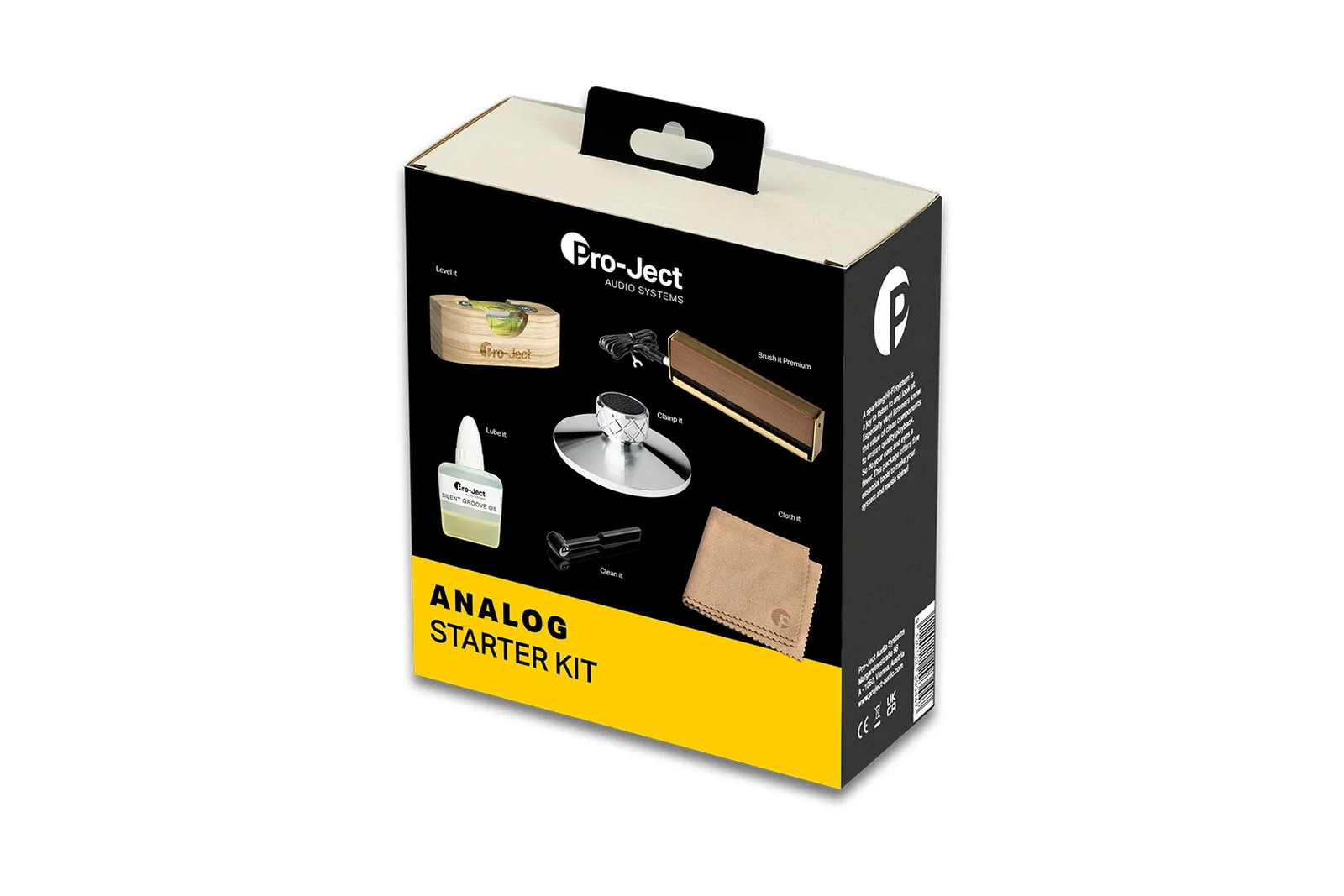

Analog Starter Kit
Price on request
- A close peer to this component
Pro-Ject Audio Systems · analog-accessories

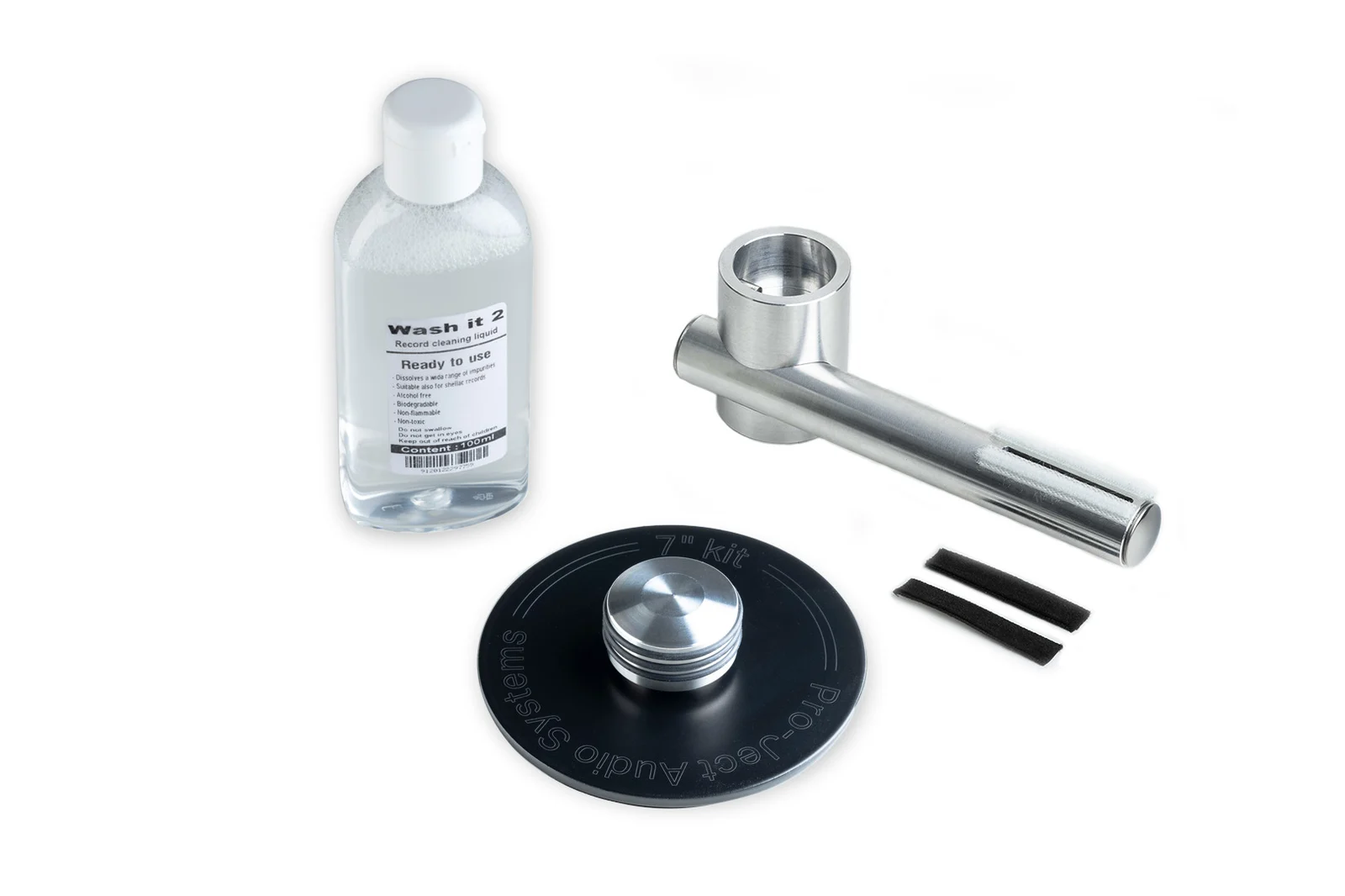

VC 7 Kit MKII
Price on request
- A close peer to this component
Pro-Ject Audio Systems · analog-accessories

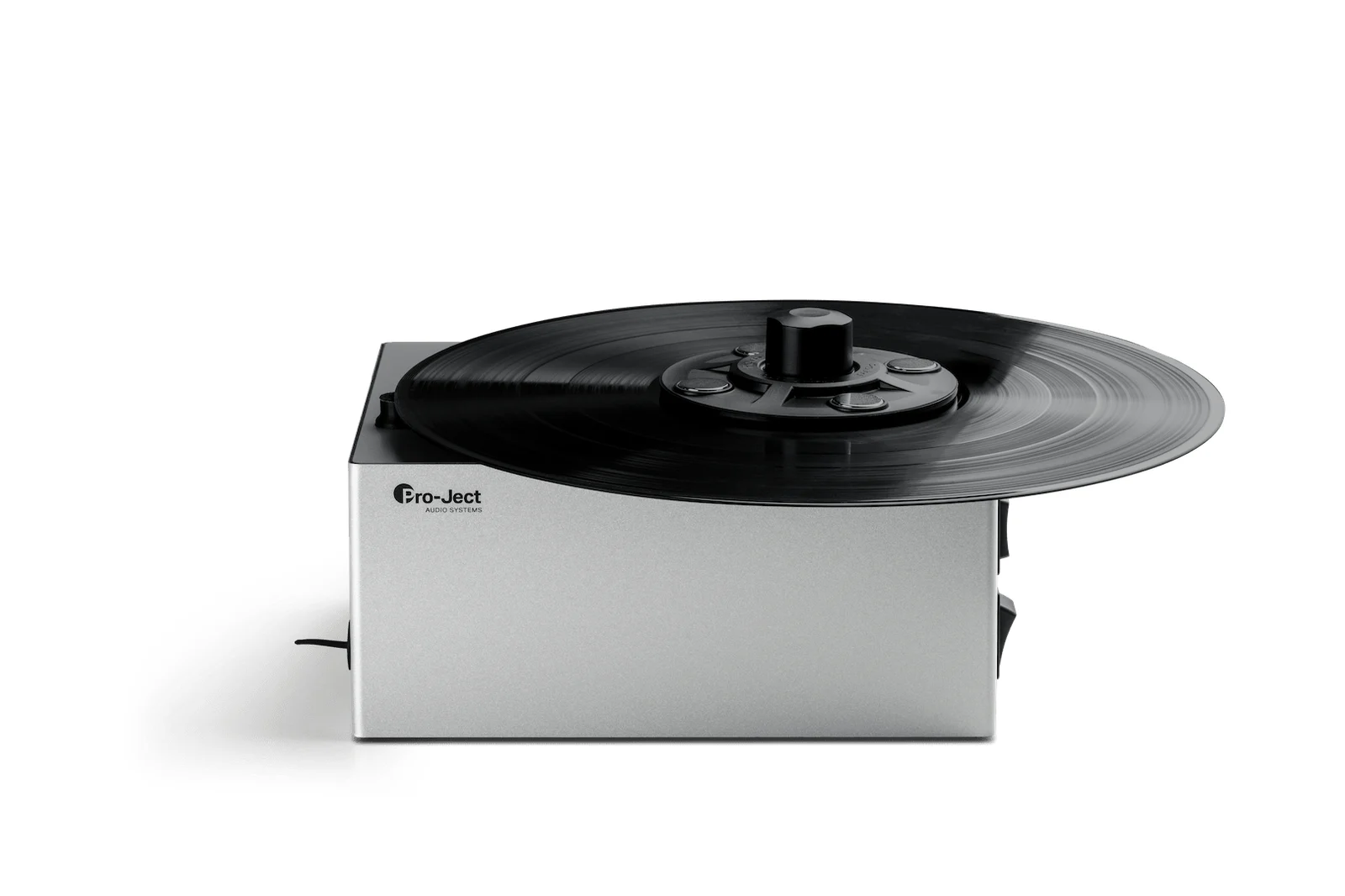

VC-E Mini
