Perlisten Audio
R8S
The Perlisten Audio R8s is an ultra-compact, single-driver subwoofer with an acoustic-suspension alignment and a 500 W RMS amplifier. Its 215 mm driver uses a glass-fiber diaphragm with ±28.0 mm linear excursion, multiple aluminum shorting rings, a multi-layer Nomex spider, a lightweight aluminum voice-coil wire, and a ground-up design developed by Perlisten engineers. Control and signal processing include a 48-bit data-path DSP, 32-bit ARM Cortex M4 processor, 2.4-inch LCD color touchscreen, iOS and Android app support, balanced XLR and unbalanced RCA inputs, and 10-band parametric EQ with three user presets.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- App
- iOS and Android
- Phase
- Variable 0-270
- Inputs
- (1) Balanced XLR (1) Unbalanced RCA
- Outputs
- (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered
- Polarity
- Normal / inverted
- Alignment
- Acoustic suspension
- Processor
- 32-bit ARM Cortex M4, double precision floating point math
- Dsp engine
- Ti DSP 48-bit data paths
- Weight
- 14.4 kg (31.7 lbs.)
- Dimensions
- 298 x 270 x 290mm 11.7 x 10.6x11.4""
- Parametric EQ
- 10-Band PEQ with 3 user presets
- Sensitivity
- 86dB /150mV/ 1.0m
- Amplifier class
- 500W rms
- Low pass filter
- bypass, 30-160Hz, slope 6,12,18,24dB/oct
- Display interface
- 2.4" LCD color touchscreen
- Driver compliment
- 215mm, Glass fiber diaprhragm +/-28.0mm linear excursion
- Available finishes
- Satin black and Satin white
- Configurable auto turn on and 12v trigger
- XLR, RCA
- Frequency response thx EQ boost large room EQ cut small room EQ
- 20-265Hz (-6dB) / 16-330Hz (-10dB) 16-265Hz (-6dB) / 14-330Hz (-10dB) 25-265Hz (-6dB) / 19-330Hz (-10dB)
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Perlisten Audio · subwoofers

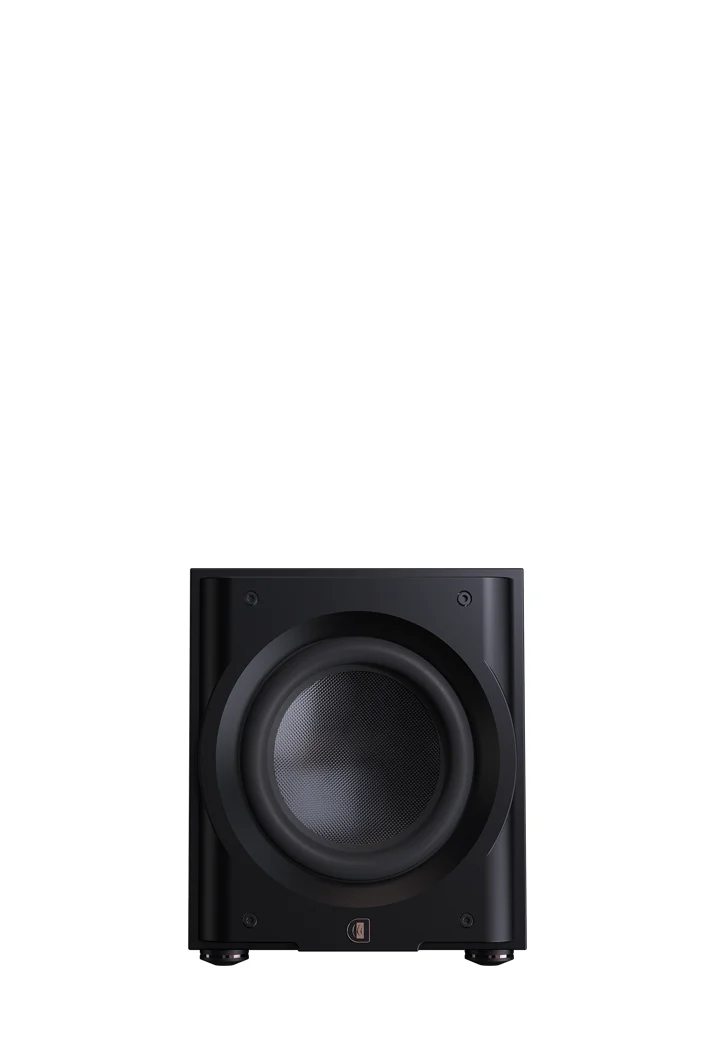

R10S
