Pro-Ject Audio Systems
Amp Box S3
The Pro-Ject Amp Box S3 is a compact stereo power amplifier made by Pro-Ject Audio Systems with one stereo RCA input, delivering 2 × 23 W into 8 ohms or 2 × 40 W into 4 ohms. It uses a newly developed PCB concept, a revised topology, and a further-developed amplifier module; total harmonic distortion is under 0.02% at 10 W/4 ohms, signal-to-noise ratio is 87 dBV at 4 ohms, and gain is 31 dB. Made in Europe, the unit has an aluminium housing to shield against interference, 12 V trigger inputs and outputs, and dimensions of 103 × 36 × 118 mm.
MSRP
—
Original list price not on record.
Used market
No tracked sales yet
MSRP to used market
Price history will fill in as sales are recorded.
Specifications
- Gain
- 31 dB
- Input
- 1 pair RCA sockets
- Peak power
- 2 x 50 W at 4 ohms
- Weight
- 385g without power supply lbs
- THD
- < 0,02% @ 10W / 4 ohms%
- Power output
- 2 x 23 W / 40 W at 8 ohms / 4 ohms
- Power supply
- 20V/3A DC (universal power supply)
- Dimensions
- 103 x 36 x 118mm"
- Trigger 12v DC
- In&Out, 2-pole jack socket Ø 2,5mm
- Input impedance
- 25 kohm
- Speaker sockets
- 4mm Ø Banana, spades. pins or bare wire
- Channel separation
- > -68 dB @ 20kHz
- Frequency response
- 20Hz - 20kHz (- 0,7dB / 4 ohms)
- Signal to noise ratio
- 87dBV (100dBV-‚A‘ weighted)/4ohms
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Peers
Pro-Ject Audio Systems · power-amplifiers

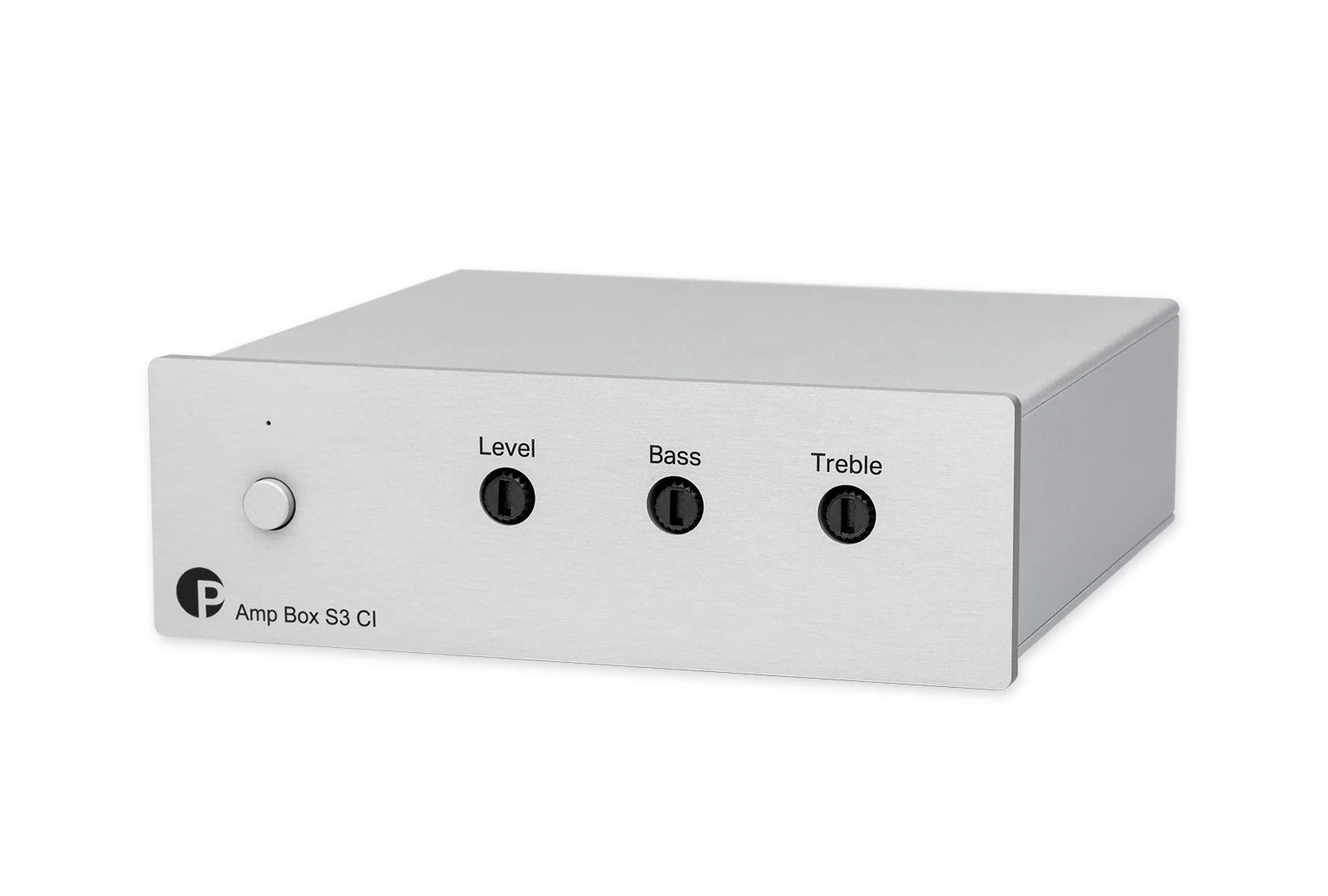

Amp Box S3 CI
