Quadraspire
Q4 EVO
The Q4 EVO is Quadraspire's modular UK-built hi-fi rack, combining 32mm-diameter curved aluminum columns with solid bamboo-ply shelves that are CNC-machined with intricate grooves on their underside to reduce resonance and dissipate energy, an evolution of the company's original 1995 Q4 design. The rack builds up tier-by-tier from a wide range of column heights and bamboo or wood-veneer finishes, using a low-mass approach — aluminum columns to eliminate residual magnetism and self-damping wood shelves — rather than high-mass damping to control vibration.
MSRP
$700
Used market · Fair
$450
MSRP to used market
From $700 at launch to $450 today.
Specifications
- Price
- Base unit from £250 per tier (or $700 for a 4-shelf US configuration); additional shelves $175 each / Q4L Evo from £300
- Shelf depth
- 15.5" standard; Sunoko Vent variant adds 3" of depth for larger components
- Feet options
- Spikes, flat feet, or castors, with floor protectors available
- Load capacity
- 80 kg (175 lb) per shelf
- Manufacturing
- Made in Bath, UK, using in-house CNC machining and an automotive spray finishing facility; ships flat-pack, assembles in roughly 15 minutes
- Shelf materials
- Solid bamboo ply / solid bamboo, available in cherry, black, dark, and natural finishes; wood-veneer options (oak, maple, wenge) and clear/sandblasted glass also offered by some retailers
- Column materials
- Aluminum, 32mm diameter (SV32), also available in a slimmer 19mm diameter on some variants; black or matt-silver finish
- Shelf count frame limit
- Modular — reviewed unit had 4 shelves with a 19.25" component opening; additional shelves easily added; manufacturer recommends a maximum of 8 tiers or 1500mm total height for performance and aesthetics
- Available column heights
- 100mm (4"), 140mm (5.5"), 180mm (7"), 216mm (8.5"), 256mm (10"), 326mm (12.75")
- Isolation vibration control approach
- Low-mass design philosophy; non-parallel/chamfered shelf edges to dissipate energy and reduce standing waves; machined grooves on shelf undersides; aluminum columns to avoid residual magnetism; optional "SV Bronze 30" upgrade kit available for all racks
Active listings (0)
Similar but better
Matched by the Audiophilia engine on character, specs and market position.
Step up
Peers
Quadraspire · racks-isolation

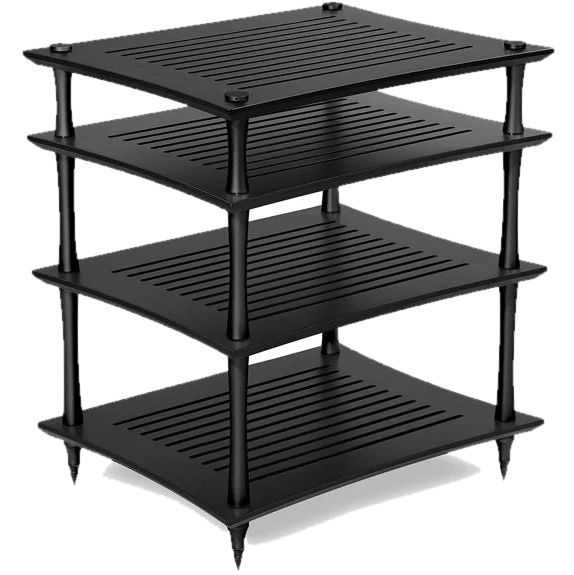

Sunoko-Vent SVT
